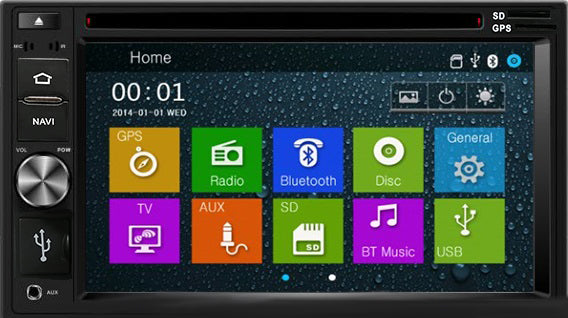

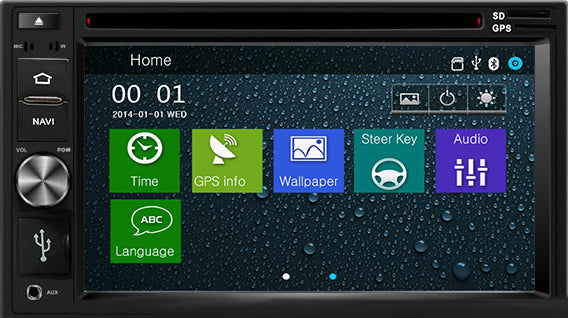

Featuring our universal 6.5" GPS navigation stereo from our latest M-Series lineup. This radio and dash kit combo will fit the Honda Accord 2003-2007. Please refer to the application list below to confirm compatibility. This kit comes with everything needed for a complete installation, including a free backup camera. Navigation map included for North America/Canada (please message us for international maps).
This kit will fit the following models:
Honda Accord 2003-2007
- Optional pocket highly recommended as the factory pocket will not close properly (sold separately)
Please make sure your vehicle is not equipped with factory navigation and/or a premium sound system. This radio will not be compatible if so. For all of our dash kit + radio combos we always recommend having a professional install the radio, it will not be a direct plug and play.
- Play CDs or watch your favorite DVDs on the 6.5" color touch-screen display. Following formats also supported are MPEG-4, JPEG, VCD and MP3.
- Simple to use built-in GPS navigation, updated maps for every year.

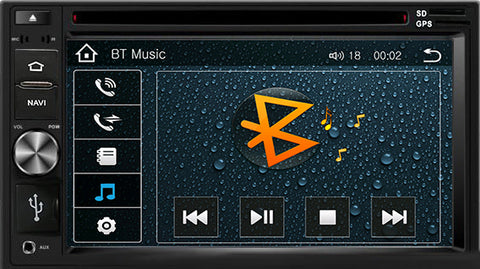

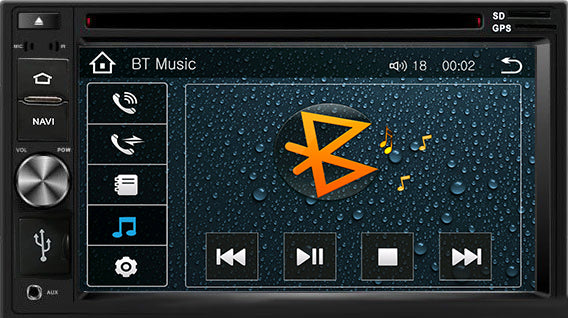

- Bluetooth connectivity allows you to connect your device and play your favorite music.

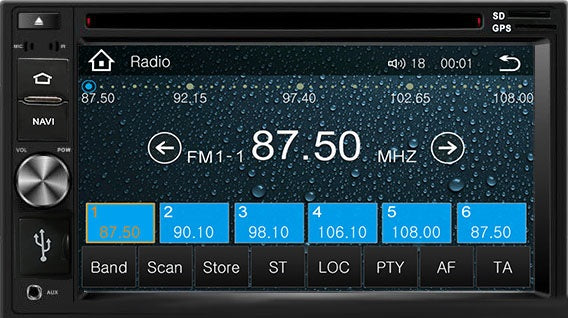

- The AM/FM tuner can be preset to 12 different stations (6 AM, 6 FM).
- Customize how your audio sounds by using the EQ settings to get the perfect audio preferences for your music.
- Use the front facing 3.5 mm AUX port or the USB port to connect your device. The radio also comes with an RCA harness for video/audio input, camera connector, and much more.
- Please select the w/ ASWC-1 option if you need to retain steering wheel control functionality.
What's Included
- 1 x GPS Navigation Head Unit
- 1 x Dash Kit (includes all mounting and fixtures)
- 1 x Power Harness
- 1 x RCA Harness
- 1 x GPS Antenna
- 1 x GPS SD Card Map File
- 1 x Backup Camera
- 1 x User Manual
- One Year Warranty
Specifications
General
Power Requirement: 14.4 VDC
Load Impedance: 4 ohms
Max Power Output: 45Wx4
Tone Controls: +/- 8Db (Bass 100Hz, Treble 10KHz)
Dimensions: 192 x 178 x 100 mm
Mounting Dimensions: 169 x 182 x 103 mm
Weight: 5.7 lbs
DVD/CD Drive
Compatible Formats: MPEG4, DVD, VCD, MP3, CD, CD-R, CD-RW, Picture-CD
Video System: Auto, NTSC, PAL
Video Section
Video System: 4:3 box mode / 4:3 panorama mode
Video Output Level: 1.0 Vp-p / 75 ohm
Horizontal Resolution: 500
Audio Section
Maximum Output Level: 600 ohms (2 channel 2.0 Vrms)
Frequency Response: 20 Hz - 20 KHz
Signal to Noise Ratio: 85 dB
Separation: 80 dB
AM Tuner Section
Tuning Range: 522 - 1620 (Europe/China/Moscow), 530 - 1710 (U.S.)
IF Range: 450 KHz
Usable Sensitivity (-30 dB): 25 dB
FM Tuner Section
Frequency Ranger: 87.5 - 108 (Europe/China), 87.5 - 107.9 (U.S.)
IF Range: 10.7 MHz
Usable Sensitivity (-20 dB): 15 dB
Signal to Noise Ratio: 60 dB
Stereo Separation: 30 dB (1 Khz)
Frequency Response: 30 - 15000 Hz
PLEASE NOTE: THIS UNIT DOES NOT SUPPORT ANY PREMIUM SOUND SYSTEMS (unless specified) OR SATELLITE RADIO.
You will need to hardwire the car's main power harness wiring to the unit harness. The aftermarket power harness will directly plug into the factory plug.
