GPS Navigation Multimedia Radio and Dash Kit for Honda Ridgeline 2005-2014

  • Sale
  • Regular price $299.99


Featuring our universal 6.5" GPS navigation stereo from our latest M-Series lineup. This radio and dash kit combo will fit the Honda Ridgeline 2005-2014. Please refer to the application list below to confirm compatibility. This kit comes with everything needed for a complete installation, including a free backup camera. Navigation map included for North America/Canada (please message us for international maps).

This kit will fit the following models:

 Honda Ridgeline 2005-2014

Please make sure your vehicle is not equipped with factory navigation and/or a premium sound system. This radio will not be compatible if so. For all of our dash kit and radio combos we always recommend having a professional install the radio, it will not be a direct plug and play.

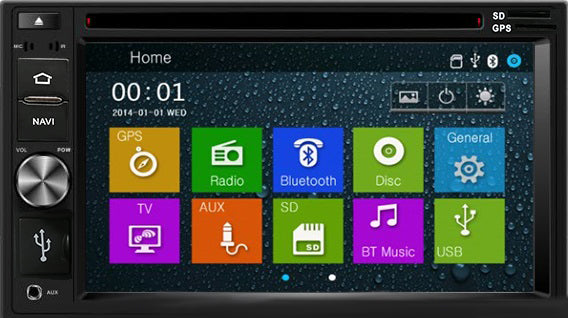

  • Play CDs or watch your favorite DVDs on the 6.5" color touch-screen display. Following formats also supported are MPEG-4, JPEG, VCD and MP3.

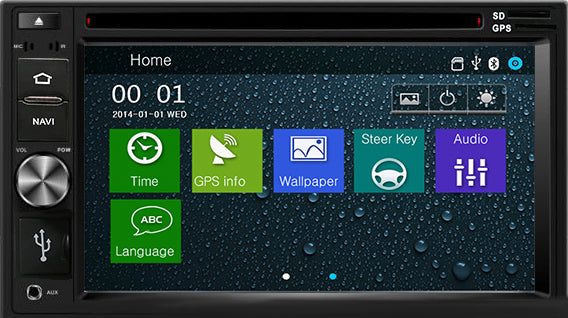

  • Simple to use built-in GPS navigation, updated maps for every year.

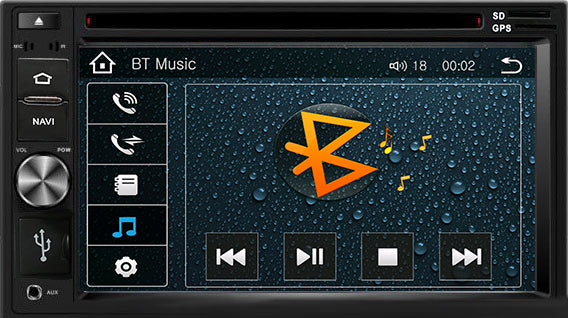

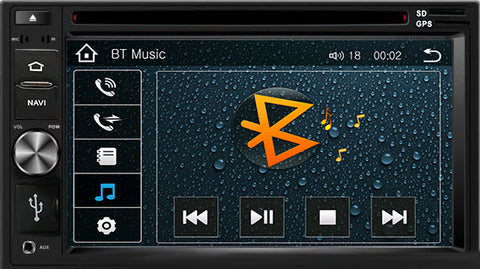

  • Bluetooth connectivity allows you to connect your device and play your favorite music.

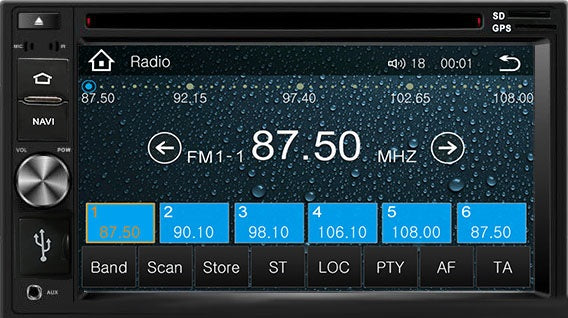

  • The AM/FM tuner can be preset to 12 different stations (6 AM, 6 FM).
  • Customize how your audio sounds by using the EQ settings to get the perfect audio preferences for your music.
  • Use the front facing 3.5 mm AUX port or the USB port to connect your device. The radio also comes with an RCA harness for video/audio input, camera connector, and much more.
  • Please select the w/ ASWC-1 option if you need to retain steering wheel control functionality.

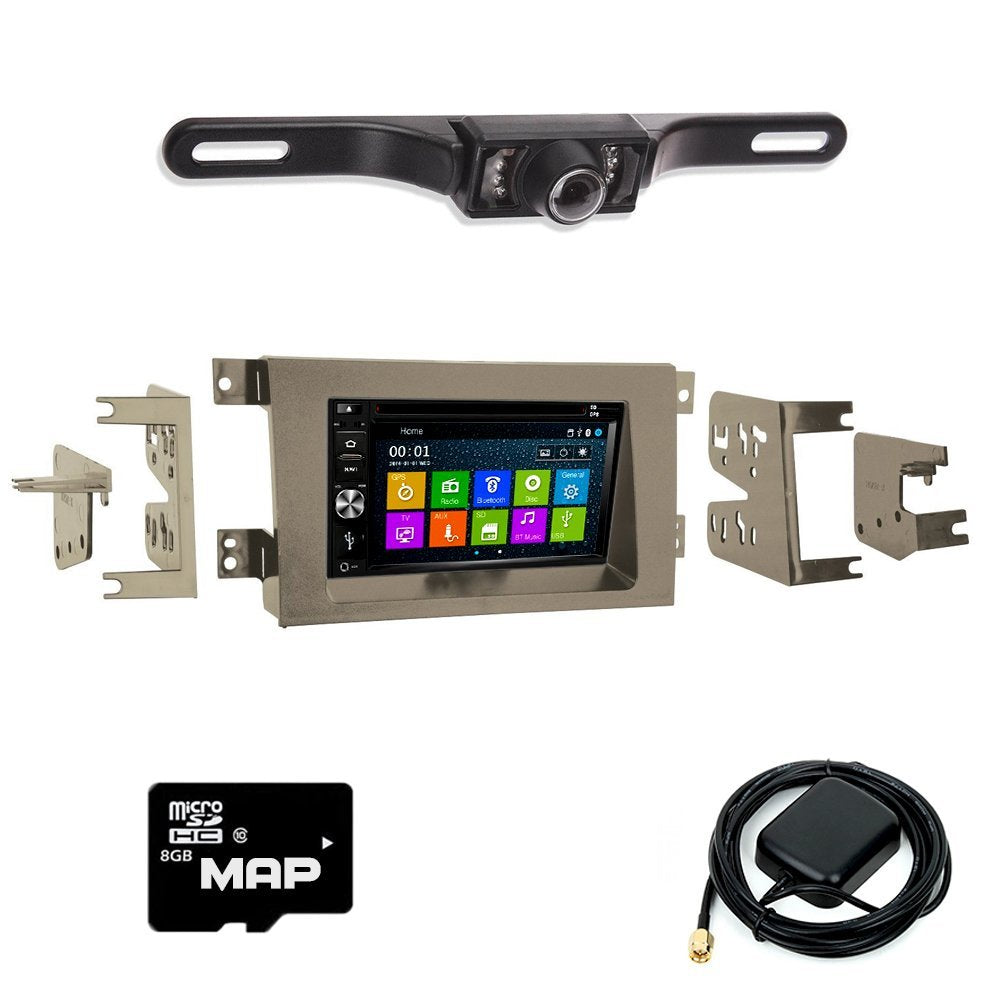

What's Included

  • 1 x GPS Navigation Head Unit

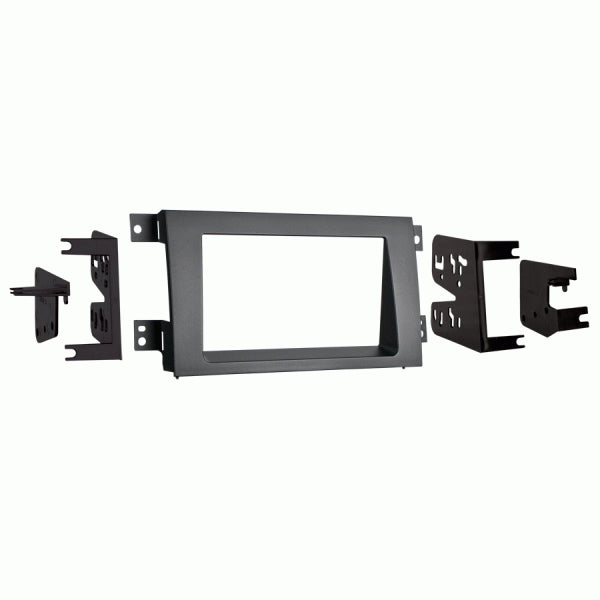

  • 1 x Dash Kit (includes all mounting and fixtures)
  • 1 x Power Harness
  • 1 x RCA Harness
  • 1 x GPS Antenna
  • 1 x GPS SD Card Map File
  • 1 x Backup Camera
  • 1 x User Manual
  • One Year Warranty

Specifications

General

Power Requirement: 14.4 VDC

Load Impedance: 4 ohms

Max Power Output: 45Wx4

Tone Controls: +/- 8Db (Bass 100Hz, Treble 10KHz)

Dimensions: 192 x 178 x 100 mm

Mounting Dimensions: 169 x 182 x 103 mm

Weight: 5.7 lbs

DVD/CD Drive

Compatible Formats: MPEG4, DVD, VCD, MP3, CD, CD-R, CD-RW, Picture-CD

Video System: Auto, NTSC, PAL

Video Section

Video System: 4:3 box mode / 4:3 panorama mode

Video Output Level: 1.0 Vp-p / 75 ohm

Horizontal Resolution: 500

Audio Section

Maximum Output Level: 600 ohms (2 channel 2.0 Vrms)

Frequency Response: 20 Hz - 20 KHz

Signal to Noise Ratio: 85 dB

Separation: 80 dB

AM Tuner Section

Tuning Range: 522 - 1620 (Europe/China/Moscow), 530 - 1710 (U.S.)

IF Range: 450 KHz

Usable Sensitivity (-30 dB): 25 dB

FM Tuner Section

Frequency Ranger: 87.5 - 108 (Europe/China), 87.5 - 107.9 (U.S.)

IF Range: 10.7 MHz

Usable Sensitivity (-20 dB): 15 dB

Signal to Noise Ratio: 60 dB

Stereo Separation: 30 dB (1 Khz)

Frequency Response: 30 - 15000 Hz


PLEASE NOTE: THIS UNIT DOES NOT SUPPORT ANY PREMIUM SOUND SYSTEMS (unless specified) OR SATELLITE RADIO.

You will need to hardwire the car's main power harness wiring to the unit harness. The aftermarket power harness will directly plug into the factory plug.
